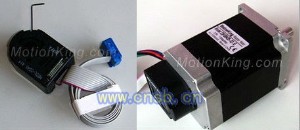

带编码器步进电机

Model Resolution Termination MotorOpitons Signals Individual
Sale
HELD-5540-A06 500CPR Ribboncablewith10position Nema14~Nema43 3-Channel
(A,/A,B,/B,Z,/Z) Yes
AP-E512A(A) 512CPR Ribboncablewith10position Nema14~Nema43 3-Channel
(A,/A,B,/B,Z,/Z) No
AP-E512A(B) 512CPR Freewires Nema14~Nema43 3-Channel
(A,/A,B,/B,Z,/Z) No
AP-E1000D(A) 1000CPR Ribboncablewith10position Nema14~Nema43 3-Channel
(A,/A,B,/B,Z,/Z) No
AP-E1000D(B) 1000CPR Freewires Nema14~Nema43 3-Channel
(A,/A,B,/B,Z,/Z) No
ElectricParameter
Outputwaveforms RectangleWave
Outputphase 3-Channel(A,/A,B,/B,Z,/Z).2-Channel(AB)
Frequencyresponse 0~100kHz
Supplyvoltage DC5V+/-5%
MechanicalParameter
Workinglife MTBF≥50000h(+25℃,2000rpm)
Optionalaxis ≤8mm
Weight 4g
EnvironmentParameter
Operatinghumidity 30~85%unfrost
Operatingtemperature -40℃~100℃
